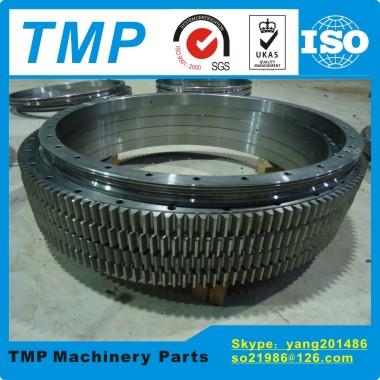

KH-325P Slewing Bearings (28.5x36.7x2.5inch) Machine Tool Bearing TMP Band slewing turntable bearing

Ask Lasest Price
Brand Name :	TMP
Model Number :	KH-325P
Certification :	ISO9001:2008
Price :	1-1000
Delivery Time :	10 days
Payment Terms :	T/T
Supply Ability :	1000 pcs/month

Add to Cart

Product Details
Company Profile

KH-325P Slewing Bearings (28.5x36.7x2.5inch) Machine Tool Bearing TMP Band slewing turntable bearing

KH-325P Slewing Bearings (28.5x36.7x2.5inch) Machine Tool Bearing TMP Band slewing turntable bearing

A . Slewing Bearings Parameters

Brand-

TMP

Model number-

KH-325P

Inner ring(in)-

28.5

Outer ring(in)-

36.7

Width(in)-

2.5

Weight(lbs)-

220

Weight(kg)-

99.8

Materials-

GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo

Series-

KH-No Gear

Lubrication type-

Grease lubrication

Rolling elements-

Ball

Load direction-

Multi-load

Structure-

The internal configuration is a deep groove gothic arch raceway, which provides four points of contact with the balls

B . KH-325P Slewing Bearings Specification Sheet

Part number

Outline dimensions (in)

weight
(lbs)

Fixing holes

Gear data inv.
stub, α = 20°

Moment
rating

Lo
(in)

Bo
(in)

Li
(in)

Bi
(in)

D2
(in)

Fz
(lbs)

Crm
(ft-lbs)

KH-325P

36.7

28.5

2.5

32.75

32.25

220

34.5

30.5

Product

Features

Slewing Bearings have high load carrying capacity, a versatile range of applications and

are highly cost-effective.Due to their design, a single bearing can reliably support radial,

axial and tilting moment loads. It is therefore possible in many cases to replace bearing

arrangements comprising a combination of radial and axial bearings by a single bearing

.TMP Slewing Bearings have Two types:Four point contact slewing bearings and

crossed roller slewing bearings.

Series

Introduction

Kaydon's KH series precision slewing ring bearings are designed to provide precise

positioning with consistent repeatability, in applications where rotation is constant,

intermittent or oscillating. KH slewing rings offer solutions for advanced rotary index

tables or any design where the bearing will mesh with other precision mechanical

components.

Series

Model No.

RK6-16P1Z,RK6-22P1Z,RK6-25P1Z,RK6-29P1Z,RK6-33P1Z,RK6-37P1Z,RK6-43P1Z,

RK6-16N1Z,RK6-22N1Z,RK6-25N1Z,RK6-29N1Z,RK6-33N1Z,RK6-37N1Z,RK6-43N1Z,

RK6-16E1Z,RK6-22E1Z,RK6-25E1Z,RK6-29E1Z,RK6-33E1Z,RK6-37E1Z,RK6-43E1Z
MTO-050,MTO-050T,MTO-065,MTO-065T,MTO-122,MTO-122T,MTO-143,MTO-143T,

MTO-145,MTO-145T,MTO-145X,MTO-170,MTO-170T,MTO-210,MTO-210T,MTO-210X,

MTO-265,MTO-265T,MTO-265X,MTO-324T,MTO-324X,

MTE-145,MTE-145T,MTE-145X,MTE-210,MTE-210T,MTE-210X,MTE-265,MTE-265T,

MTE-265X,MTE-324T,MTE-324X,MTE-415,MTE-415T,MTE-470,MTE-470T,MTE-540,

MTE-540T,MTE-590,MTE-590T,MTE-705,MTE-705T,MTE-730,MTE-730T,MTE-870,MTE-870T
KH-125P,KH-166P,KH-225P,KH-275P,KH-325P,KH-125E,KH-166E,KH-225E,KH-275E,KH-325E
HS6-16P1Z,HS6-21P1Z,HS6-25P1Z,HS6-29P1Z,HS6-33P1Z,HS6-37P1Z,HS6-43P1Z,

HS6-16N1Z,HS6-21N1Z,HS6-25N1Z,HS6-29N1Z,HS6-33N1Z,HS6-37N1Z,HS6-43N1Z.

HS6-16E1Z,HS6-21E1Z,HS6-25E1Z,HS6-29E1Z,HS6-33E1Z,HS6-37E1Z,HS6-43E1Z

Applications

KH series slewing ring bearings have been used successfully in applications demanding

higher precision, including:
Precision rotary index tables
Radar antennas
Satellite antennas
Robots
Medical systems and medical devices
Machine tool tables
