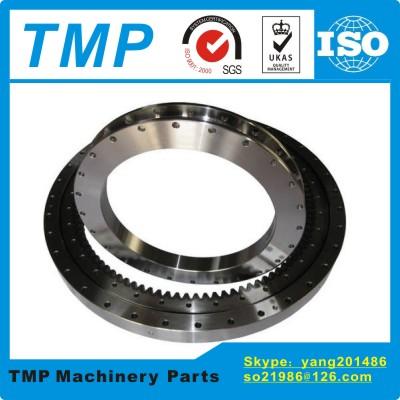

RK6-43P1Z Slewing Bearings (38.75x47.17x2.205inch) Without Grear TMP Band slewing turntable bearing

Ask Lasest Price
Brand Name :	TMP
Model Number :	RK6-43P1Z
Certification :	ISO9001:2008
Price :	1-1000
Delivery Time :	10 days
Payment Terms :	T/T
Supply Ability :	1000 pcs/month

Add to Cart

Product Details
Company Profile

RK6-43P1Z Slewing Bearings (38.75x47.17x2.205inch) Without Grear TMP Band slewing turntable bearing

RK6-43P1Z Slewing Bearings (38.75x47.17x2.205inch) Without Grear TMP Band slewing turntable bearing

A . Slewing Bearings Parameters

Brand-

TMP

Model number-

RK6-43P1Z

Inner ring(in)-

38.75

Outer ring(in)-

47.17

Width(in)-

2.205

Weight(lbs)-

153

weight(kg)-

69.40

Materials-

GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo

Series-

RK-No Gear

Lubrication type-

Grease lubrication

Rolling elements-

Ball

Load direction-

Multi-load

Structure-

RK series slewing rings are offered in nongeared, internally geared, and externally geared configurations for maximum design flexibility

B . RK6-43P1Z Slewing Bearings Specification Sheet

Part number

Outline dimensions (in)

weight
(lbs)

Fixing holes

Gear data inv.
stub, α = 20°

Moment
rating

Lo
(in)

Bo
(in)

Li
(in)

Bi
(in)

D2
(in)

Fz
(lbs)

Crm
(ft-lbs)

RK6-43P1Z

47.17

38.75

2.205

44.65

42.92

41.27

153

39.88

75500

Product

Features

Slewing Bearings have high load carrying capacity, a versatile range of applications and

are highly cost-effective.Due to their design, a single bearing can reliably support radial,

axial and tilting moment loads. It is therefore possible in many cases to replace bearing

arrangements comprising a combination of radial and axial bearings by a single bearing.

BYC Slewing Bearings have Two types:Four point contact slewing bearings and crossed

roller slewing bearings.

Series

Introduction

Kaydon RK series slewing ring bearings provide solutions for applications where a large

diameter and lighter weight are key. RK series slewing rings have a flanged

cross-section on one or both rings that reduces weight and provides the equipment designer

with Kaydon's unique flexibility, accommodating various configurations of adjacent mounting

structures and bolting arrangements.

Series

Model No.

RK6-16P1Z,RK6-22P1Z,RK6-25P1Z,RK6-29P1Z,RK6-33P1Z,RK6-37P1Z,RK6-43P1Z,

RK6-16N1Z,RK6-22N1Z,RK6-25N1Z,RK6-29N1Z,RK6-33N1Z,RK6-37N1Z,RK6-43N1Z,

RK6-16E1Z,RK6-22E1Z,RK6-25E1Z,RK6-29E1Z,RK6-33E1Z,RK6-37E1Z,RK6-43E1Z
MTO-050,MTO-050T,MTO-065,MTO-065T,MTO-122,MTO-122T,MTO-143,MTO-143T,

MTO-145,MTO-145T,MTO-145X,MTO-170,MTO-170T,MTO-210,MTO-210T,MTO-210X,

MTO-265,MTO-265T,MTO-265X,MTO-324T,MTO-324X,MTE-145,MTE-145T,

MTE-145X,MTE-210,MTE-210T,MTE-210X,MTE-265,MTE-265T,MTE-265X,MTE-324T,

MTE-324X,MTE-415,MTE-415T,MTE-470,MTE-470T,MTE-540,MTE-540T,MTE-590,

MTE-590T,MTE-705,MTE-705T,MTE-730,MTE-730T,MTE-870,MTE-870T
KH-125P,KH-166P,KH-225P,KH-275P,KH-325P,KH-125E,KH-166E,KH-225E,KH-275E,KH-325E
HS6-16P1Z,HS6-21P1Z,HS6-25P1Z,HS6-29P1Z,HS6-33P1Z,HS6-37P1Z,HS6-43P1Z,

HS6-16N1Z,HS6-21N1Z,HS6-25N1Z,HS6-29N1Z,HS6-33N1Z,HS6-37N1Z,HS6-43N1Z.

HS6-16E1Z,HS6-21E1Z,HS6-25E1Z,HS6-29E1Z,HS6-33E1Z,HS6-37E1Z,HS6-43E1Z

Applications

RK series slewing ring bearing solutions have been used successfully in a variety of

light to medium duty applications including:
Small cranes, booms, and lifts
Industrial positioners and rotary tables
Chute swivels
Stretch wrapping machines
Bottle filling machines
Conveyors and related material handling equipment
