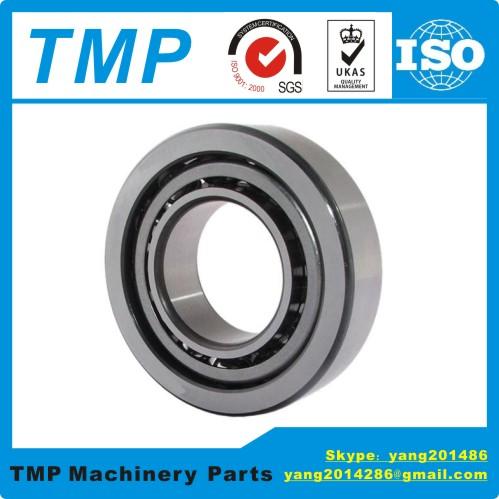

71803C DBL P4 Angular Contact Ball Bearing (17x25x5mm) Machine Tool Bearing Chinese High precision Motor Bearing Made in China
A . Angular Contact Ball Bearing Parameters
Brand-	TMP
Structure-	Angular Contact ball
Model number-	71803C AC/C
Inner ring(mm)-	17
Outer ring(mm)-	25
Width(mm)-	5
Weight(Kg)-	0.008
Materials-	Chrome steel/GCR15
Precision grade-	P4/P2
Lubrication type-	Grease lubrication
Contact Angle-	C=15°;AC=25°
Material(Ball)-	Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row-	Single rows
Material(Cage)-	TYN-PA;TR-PF
Combination of mark-	SU:Universal combination (single row) DU:Universal combination (double rows) DB: Back-to-back combination DF: Face-to-face combination DT: Parallel combination DBD.DFD.DTD: Three rows DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark-	EL: Micro preloaded L : Light preload M : Medium preloade H : Heavy preloaded

B . 71803C Angular Contact Ball Bearing Specification Sheet
Model Number	Dimensions			α=15°		α=25°		Material (Cage )	Weight (kg) Approx
				Limiting speed		Limiting speed
	d	D	B	Basic load rating	Lubrication	Basic load rating	Lubrication
				Cr Cor	Grease Oil	Cr Cor	Grease Oil
71803C	17	25	5	2.3 1.9	52000 79000	2.1 1.8	49000 74000	PF	0.008

Categories:	Angular Contact Ball Bearings Ceramic Ball Bearings
Related Search:	71803C DBL P4,71803C Motor Bearing,71803C Angular Contact Ball Bearing,71803C Spindle bearing,17x25x5mm bearing

C . 718 series Angular Contact Ball Bearing Details

Product

Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact

ball bearings can withstand high radial-axial loads and reach high speeds.

They are asymmetrical for manufacturing reasons and can withstand unidirectional

axial loads only. Angular bearings are usually mounted in a group of two or more

opposed preloaded units with rigid or elastic spacers. Typically, the inner and

outer raceways and balls are made of chrome steel. Where operating conditions are

severe, bearings may have ceramic balls creating a hybrid bearing.

Series

Introduction

ISO 18 Series - highest speed, lowest load bearings-718 Series Angular Contact

Bearings

Series

Model No.

71800C 71801C 71802C 71803C 71804C 71805C 71806C 71807C 71808C 71809C 71810C

71811C 71812C 71813C 71814C 71815C 71816C 71817C 71818C 71819C 71820C 71821C

71822C 71824C 71826C 71828C 71830C 71832C 71834C 71836C 71838C 71840C 71844C

71848C 71852C 71856C 71860C 71864C 71868C 71872C 71876C 71880C 71884C 71888C

71892C 71896C 718/500C

Applications

Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
