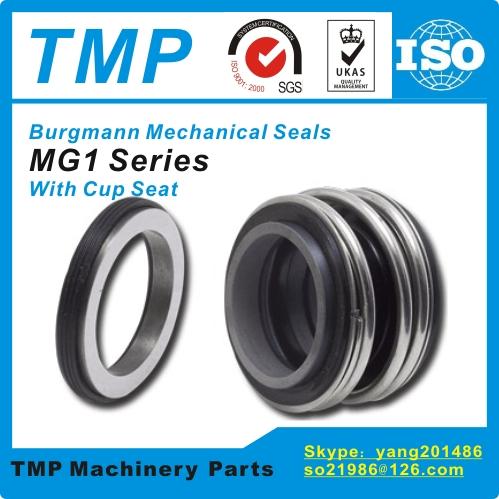

    MG1-12mm Eagle Burgmann Mechanical Seals MG1 Series for 12mm Shaft Pump Rubber Bellow seals

    Eagle Burgmann Mechanical Seals MG1 Series for 12mm Shaft Pump Seal-SIC/SIC/VITON
    SeriesBurgmann Mechanical Seals MG1
    Model NumberMG1-12mm
    Shaft Size12mm
    Introduction

    Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any

    torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing

    element and drive collar. The seal face is driven through the spring and “L“-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any

    dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications

    Application
    Date

    OPERATING LIMITS
    Temperature:-20°C~+120°C
    Pressure: ≤1.2MPa
    Speed: ≤10m/s

    Equivalent to:
    • Burgmann MG1 seal
    • Flowserve Pac-Seal 190
    • Hecker HN 410SU
    • Roten L3
    MaterialsStationary Ring(Ceramic/SiC/TC)
    Rotary Ring(Carbon/SiC/TC)
    Secondary Seal(NBR/EPDM/VITON)
    Spring & Other Parts(SUS304/SUS316)
