Brand Name : | TMP |
Model Number : | MG13-65 |
Certification : | ISO9001:2008 |
Price : | 1-1000 |
Delivery Time : | 10 days |
Payment Terms : | T/T |
Supply Ability : | 1000 pcs/month |
MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm) Rubber Bellow Seals | |
Series | Burgmann Mechanical Seals MG13 Series |
Model Number | MG13-65 |
Shaft Size | 65mm |

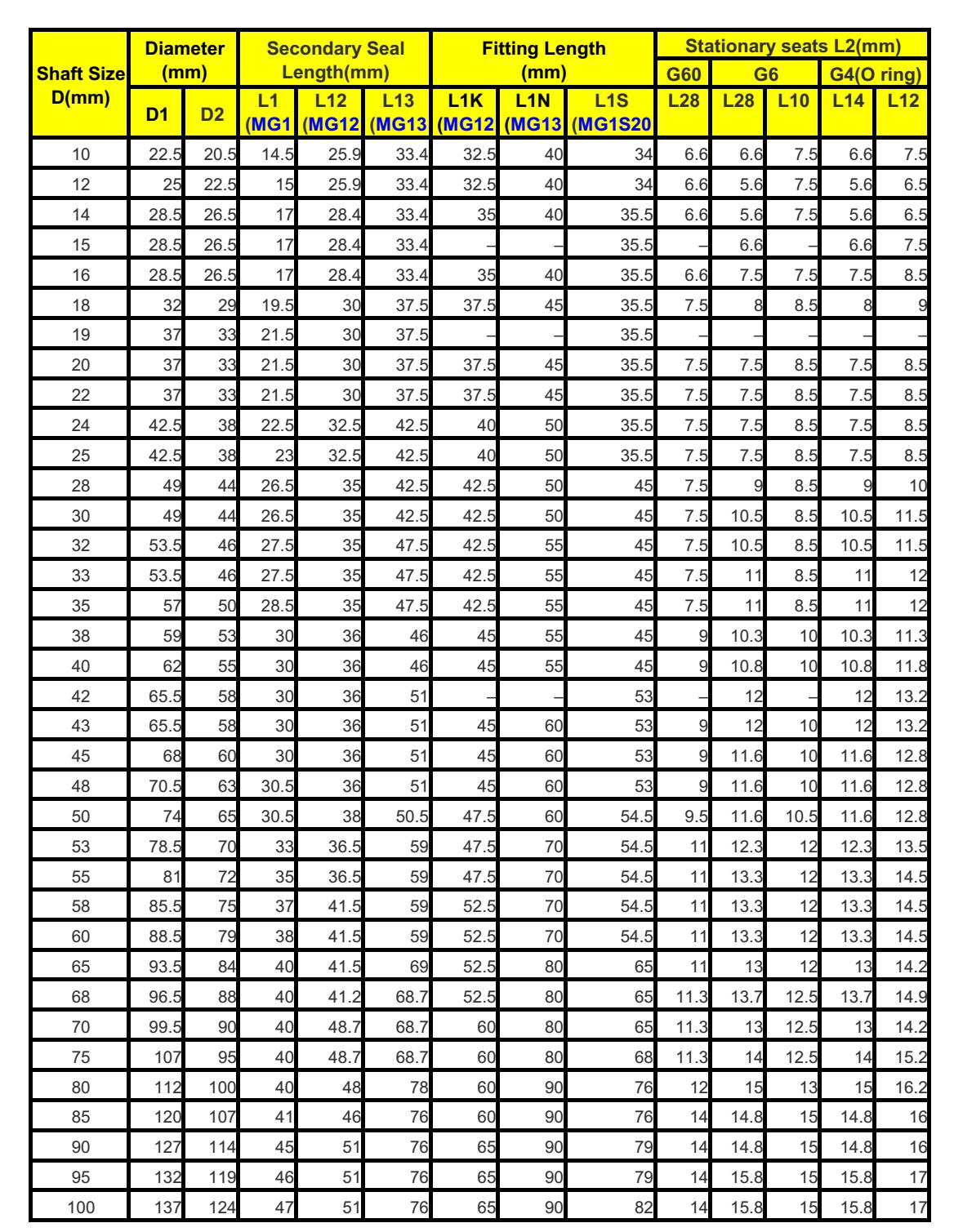

Introduction | MG13:Dimensions, items and designationssame as for MG1, butwith an extended bellows tailto achieve thefitting length I1Naccording to EN12756 in combination with seat G6 or G60. |
Application Date | OPERATING LIMITS Equivalent to: • Burgmann MG13 seal • Flowserve Pac-Seal 193 • Hecker HN 410NU • Roten L3N |
Materials | • Stationary Ring(Ceramic/SiC/TC) • Rotary Ring(Carbon/SiC/TC) • Secondary Seal(NBR/EPDM/VITON) • Spring & Other Parts(SUS304/SUS316) |
![]() |
